2000WOG球阀 | Q11F

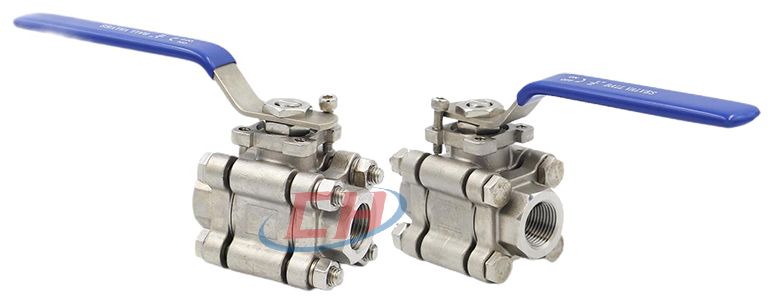

2000WOG球阀 产品说明
2000WOG球阀Q11F阀体采用2000WOG阀体，比1000WOG阀体耐压更高，适用范围更广。螺纹制式可选G螺纹、NPT螺纹、BSP螺纹、BSTP螺纹、RC螺纹等，阀座采用PTFE密封，可以在一定腐蚀和温度工作条件下工作，密封性能优秀，基本实现零泄漏。公称通径覆盖DN6到DN100，广泛应用水、气体、溶液、油品等场合使用。
2000WOG球阀 材质参数
| 序号No. | 零件PARTS | 材料MATERIAL | ||
|---|---|---|---|---|
| 1 | 阀盖BONNET | WCB | CF8 | CF8M |
| 2 | 垫片GASKET | PTFE | ||
| 3 | 阀座SEAT | RPTFE/PEEK | ||
| 4 | 球体BALL | CF8 | CF8 | CF8M |
| 5 | 阀体BODY | WCB | CF8 | CF8M |
| 6 | 六角螺栓HEXSOCKET BOLT | 304 | ||
| 7 | 阀杆STEM | 304 | 304 | 316 |
| 8 | 阀杆垫圈STEM WASHER | PTFE+25% GF | ||
| 9 | O形圈O-RING | FPM | ||
| 10 | 填料PACKING | PTFE | ||
| 11 | 耐磨垫圈WEAR WASHER | PTFE+25% GF | ||
| 12 | 填料盖GLAND | 304 | ||
| 13 | 碟形弹簧DISC SPRING | 304 | ||
| 14 | 压盖法兰GLAND FLANGE | CF8 | ||
| 15 | 螺母NUT | 304 | ||
| 16 | 六角螺栓HEXSOCKET BOLT | 304 | ||
| 17 | STOPPER | 304 | ||
| 18 | 手柄HANDLE | WCB/CF8 | ||
| 19 | BOLT | 304 | ||
| 20 | 螺母NUT | 304 | ||

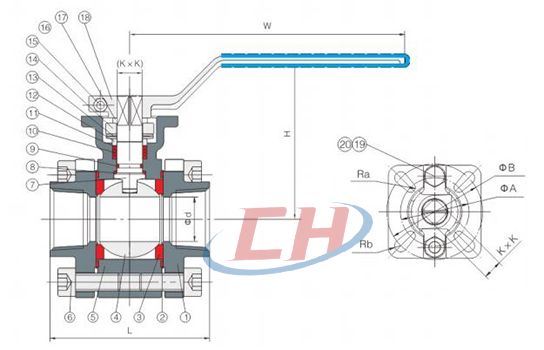

2000WOG球阀 结构尺寸图
2000WOG球阀 连接尺寸
| 尺寸SIZE | d | L | W | KxK | A | B | Ra | Rb | |
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | DN6 | 10 | 68 | 140 | 9×9 | 36 | 42 | 3.0 | 3.0 |
| 3/8" | DN10 | 12 | 68 | 140 | 9×9 | 36 | 42 | 3.0 | 3.0 |
| 1/2" | DN15 | 15 | 76 | 140 | 9×9 | 36 | 42 | 3.0 | 3.0 |
| 3/4" | DN20 | 20 | 91 | 140 | 9×9 | 36 | 42 | 3.0 | 3.0 |
| 1" | DN25 | 25 | 102 | 170 | 11×11 | 42 | 50 | 3.0 | 3.5 |
| 1-1/4" | DN32 | 32 | 112 | 170 | 11×11 | 42 | 50 | 3.0 | 3.5 |
| 1-1/2" | DN40 | 38 | 125 | 200 | 14×14 | 50 | 70 | 3.5 | 4.5 |
| 2" | DN50 | 50 | 149 | 200 | 14×14 | 50 | 70 | 3.5 | 4.5 |
| 2-1/2" | DN65 | 65 | 185 | 300 | 17×17 | 70 | 102 | 4.5 | 5.5 |
| 3" | DN80 | 80 | 205 | 300 | 17×17 | 70 | 102 | 4.5 | 5.5 |
| 4" | DN100 | 100 | 240 | 300 | 17×17 | 70 | 102 | 4.5 | 5.5 |
